Version 2021.12.07
1,426 downloads
Hidden cable routing z belt cover mod Credit Mod based on the design of the Voron crew. Thank you for your awesome work! Print settings As stated in the Voron documentation: ABS 0.2mm layer hight 0.4mm extrusion width 40% infill wall count 4 top/bottom layers 5 no supports Bom Only the printed file. Improvement Added the possibility to route cables on the bottom of the cover. Description I liked the design of the old Voron 2.2 covers more than the current design so I based my mod on them. This mod allows to route cables that are hidden in the extrusions to the bottom compartment. To achieve that the inner part of the z belt cover is a bit thicker and a path is cut out on the bottom where cables can be routed. The overall dimensions are the same as the stock 2.2 covers. Note: Be careful to restrict the cable in the bottom compartment so it does not rub on your z-belts. Pictures Top: -
Version 2021.11.20
159 downloads

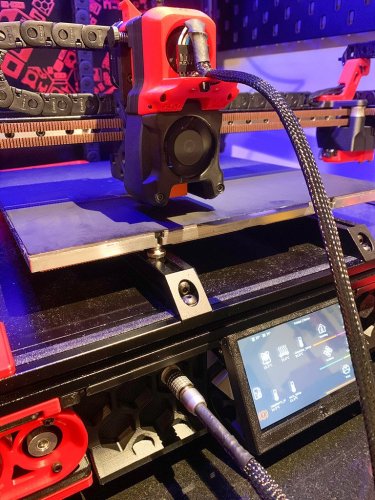

Credit This mod is based on the mod of 3DP MAMSIH Th3FalleN shared in voronuser_mods channel in discord: https://discord.com/channels/460117602945990666/635687829254701107/849006095430844427 or https://discord.com/channels/460117602945990666/635687829254701107/849035515802288158 Thank you for your awesome work! Print settings As stated in the Voron documentation: ABS 0.2mm layer hight 0.4mm extrusion width 40% infill wall count 4 top/bottom layers 5 no supports Bom 2x heat insert m3 2mm wide zip-tie Improvement Added a cable strain-relief Description I really liked the adxl mount posted in the voronuser_mods channel by 3DP MAMSIH. Thanks to Th3FalleN it was modified to have heat-set inserts. I added the possibility to fix the cable to the mount, so it does not need to hang directly from the adxl pin headers.
